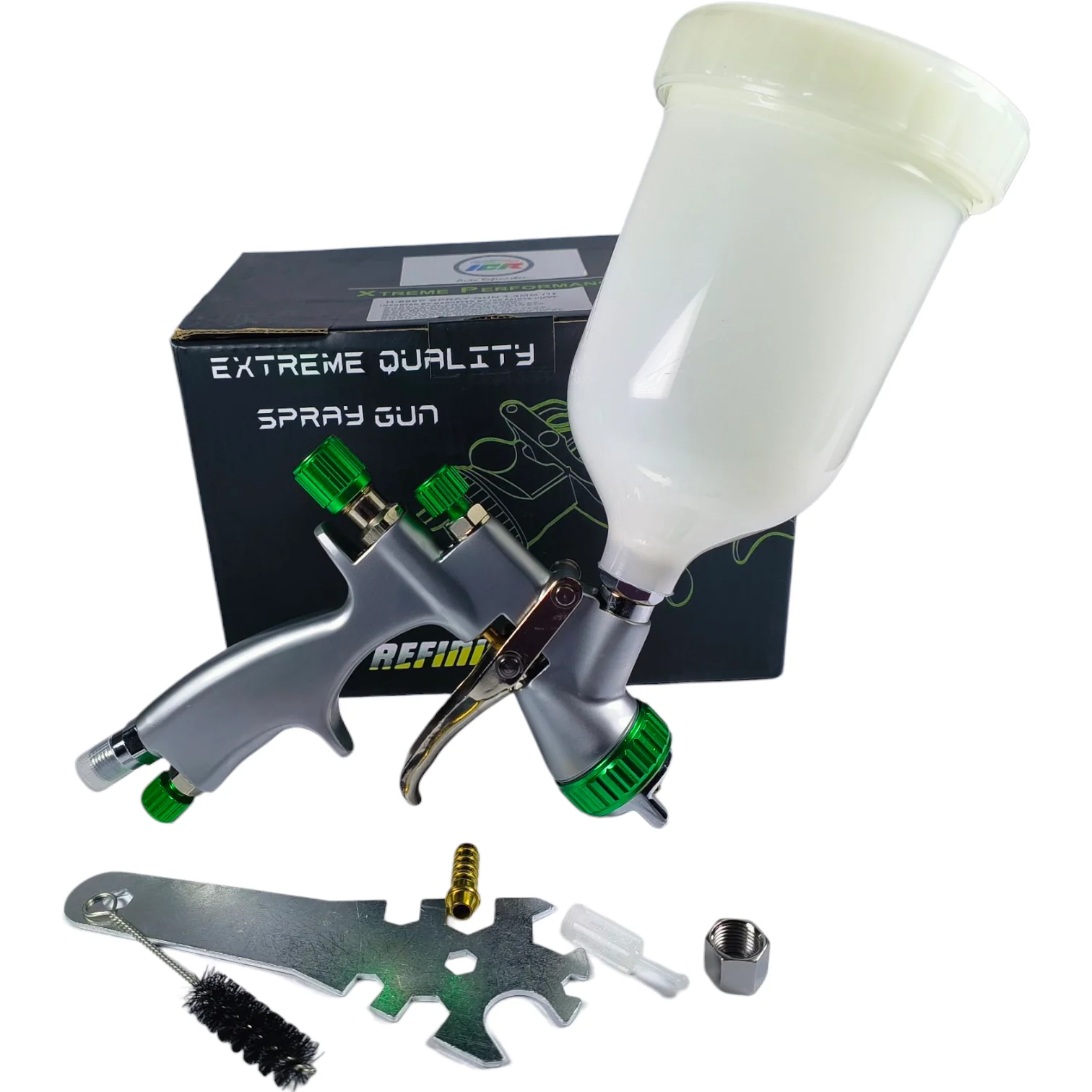

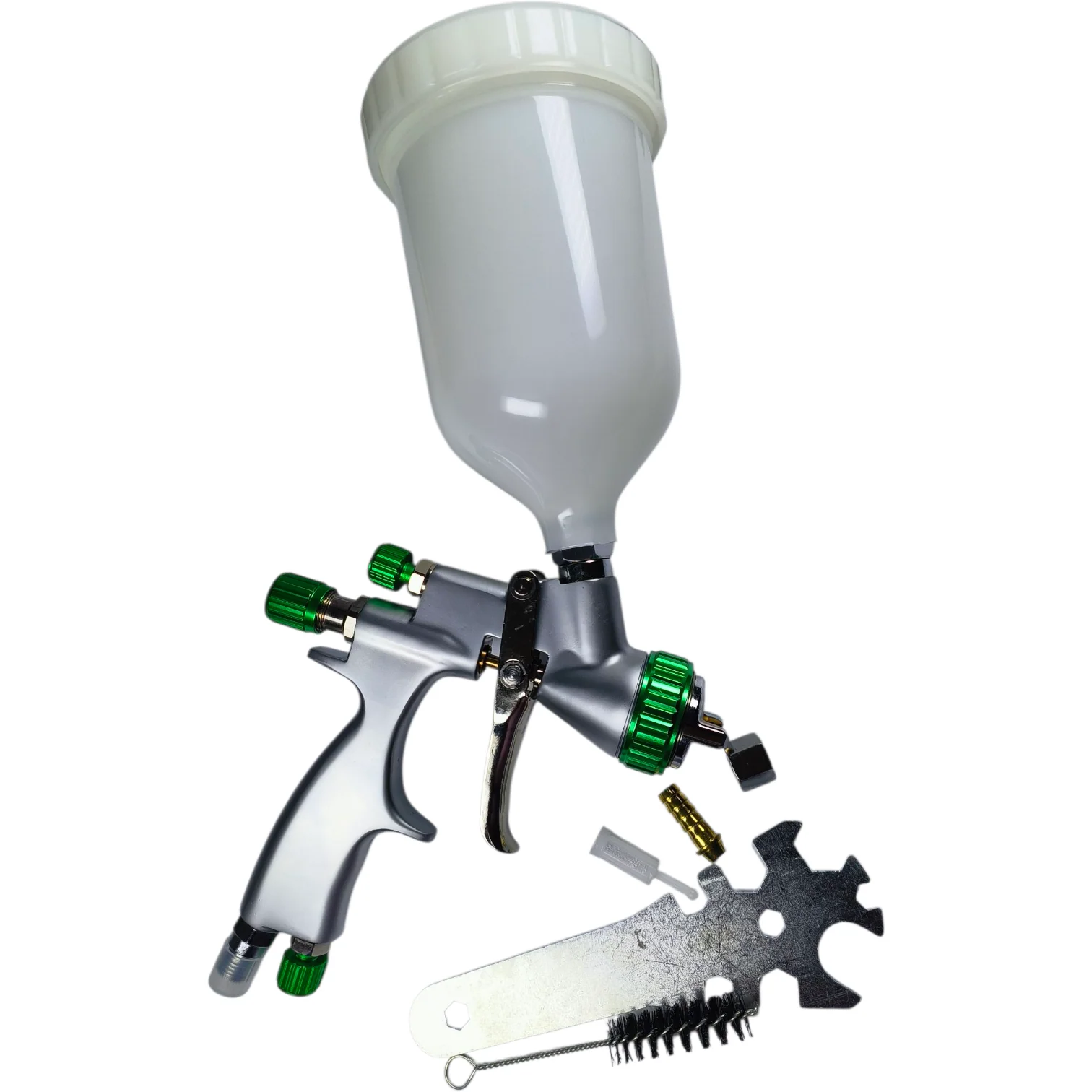

H-899P 1.3mm SPRAY GUN

The H-899P 1.3mm Spray Gun stands out as an elite refinishing solution built to meet the rigorous demands of professional automotive painters and wood finishing technicians. Utilizing state-of-the-art High Volume Low Pressure (HVLP) technology, the tool operates at an optimal working pressure of 2.0 bar (29 psi) to restrict paint bounce-back, which fundamentally decreases environmental material waste and saves paint costs. Its high-grade brass air cap combined with a 1.3mm stainless steel fluid setup handles thin-to-medium viscosity coatings perfectly, making it highly recommended for car topcoats, clearcoats, varnishes, and modern water-based metallic paints. Performance is highly customizable via separate precision adjustment knobs that give the user full authority over the 280mm wide fan pattern, fluid output, and total air volume.

Core Technical Specifications

According to official distributor documentation, such as Southern Paints, the hardware functions under these exact parameters: [1]

• Nozzle Size: 1.3mm precision stainless steel needle and tip.

• Optimal Air Pressure: 2.0 bar / 29 PSI (Maximum safe threshold at 3.0 bar / 43 PSI).

• Air Consumption: High volume demands of 15 CFM (approx. 430 Litres/min).

• Pattern Dimensions: Approximately 280mm broad fan width at a standard 170mm spraying distance.

• Fluid Reservoir: 600ml top-mounted gravity-feed cup.

• Air Connection: Standard 1/4" air inlet thread.

Flush a dedicated cleaning solvent through the gun and wipe down the outer chrome chassis. Never submerge the entirety of the tool or use sharp metal needles to scrape out the air cap, as doing so permanently alters the micro-drilled air holes and distorts your fan uniformity.
